Sujet

Sections of the hull of H.M.S. Terpsichore, showing effect of the torpedo explosion at Chatham, 1865 Creator: Unknown.

Légende

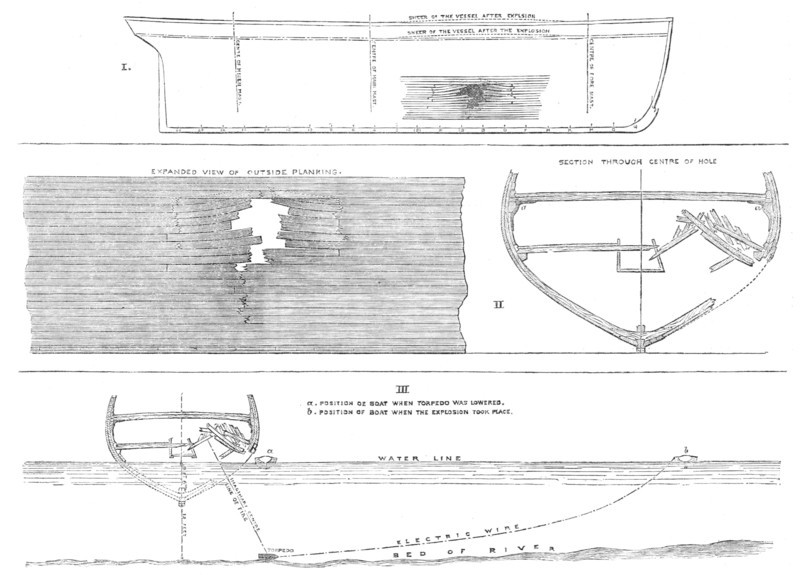

Sections of the hull of H.M.S. Terpsichore, showing effect of the torpedo explosion at Chatham, 1865. Official drawings '...by Mr. P. Thornton, Master Shipwright of Chatham Dockyard, showing the exact amount of damage that was inflicted upon the hull of the old 18-gun frigate Terpsichore by the explosion of the two 75-pounders [during] the very striking experiments with Mr. Beardslee's submarine torpedoes, or explosive shells...in the River Medway. No. 3 shows the relative positions of the ship, the torpedo, and the boat from which it was fired by an electric wire: the figure a representing the place where the boat lay when the torpedo was lowered from its side; while the figure b shows the place to which the boat had been removed before the signal of firing the torpedo was given...No. 1 shows the general longitudinal lines of the ship, with the hole made by the explosion of the torpedo...An enlarged view of a portion of the outside planking around this hole is also given. No. 2 presents a cross section of the vessel, showing very minutely how her timbers were shivered. In the parts marked a, the knees are seen as broken through the throat - viz., two on the starboard and four on the port side'. From "Illustrated London News", 1865.

Crédit

Photo12/Heritage Images/The Print Collector

Notre référence

HRM24A26_425

Model release

NA

Property release

NA

Licence

Droits gérés

Format disponible

31,5Mo (1,0Mo) / 33,1cm x 23,8cm / 3908 x 2813 (300dpi)

Mots clés

transport transportation wood destruction timber boat boats arts art electricity ship ships test research British weapon weapons color electric section damage damaged explosion electrical wooden war lumber exploding experiment century explosive Britain experimental testing diagram newspapers press print concept Hull Navy explosives blowing up B&W warfare engraved engraving research and development Colour naval warfare 19th century water transport warship torpedo black & white black and white B W weaponry white and black r&d warships nineteenth century Royal Navy The Print Collector Illustrated London News ILN newspaper Unknown George naval ship 19th-century G.W. George Beardslee Beardslee G.W. Beardslee
