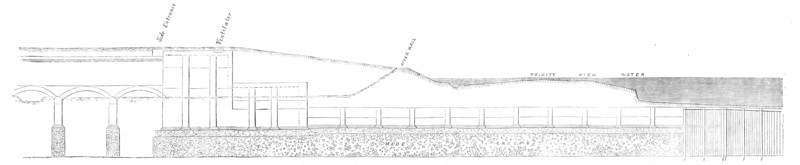

London Main-Drainage Works: section of the outfall of the Northern Drainage at Barking Creek, 1864. Creator: Unknown.

Légende

London Main-Drainage Works: section of the outfall of the Northern Drainage at Barking Creek, 1864. Diagram showing the outlet to the river: 'Side entrance; ventilator; river wall; Trinity high water...The sewage lifted [at Pimlico] will be conveyed through the low-level sewer, which is to pass along the Thames embankment, now in course of construction, and along the intended new street to the Mansion House as far as Cannon-street; and thence in an easterly course past the Tower and the neighbourhood of the London Docks and Limehouse to the larger pumping establishment at Abbey Mills. This sewer will collect, in its course, in addition to the water from the western districts, the sewage from Westminster, the City, Mile-end, Shadwell, Stepney, Bow, Limehouse, Poplar, Bromley, and Blackwall; the whole of which - amounting in all to 15,000 cubic feet per minute - will be lifted a height of 36 ft. into the outfall sewer, already constructed, and conveyed through it to Barking Creek'. From "Illustrated London News", 1864.

Crédit

Photo12/Heritage Images/The Print Collector

Notre référence

HRM24A26_089

Model release

NA

Property release

NA

Licence

Droits gérés

Format disponible

18,7Mo (532,4Ko) / 47,7cm x 9,8cm / 5630 x 1162 (300dpi)
