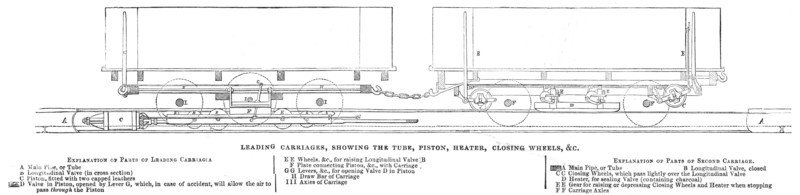

Leading carriages, showing the tube, piston, heater, closing wheels &c., 1845. Creator: Unknown.

Légende

Leading carriages, showing the tube, piston, heater, closing wheels &c., 1845. Diagram showing an atmospheric railway, a system using air pressure for locomotion, invented by Clegg and Samuda. 'Explanation of parts of leading carriage. A: Main Pipe, or Tube; B: Longitudinal Valve (in cross section); C: Piston, fitted with two capped leathers; D: Valve in Piston, opened by Lever G, which, in case of accident, will allow the air to pass through the Piston; E E: Wheels. &c., for raising Longitudinal Valve B; F: Plate connecting Piston, &c., with Carriage; G G: Levers, &c., for opening Valve D in Piston; H: Draw Bar of Carriage; I I I: Axles of Carriage'. From "Illustrated London News", 1845, Vol VII.

Crédit

Photo12/Heritage Images/The Print Collector

Notre référence

HRM21A07_179

Model release

NA

Property release

NA

Licence

Droits gérés

Format disponible

17,2Mo (786,9Ko) / 42,0cm x 10,3cm / 4960 x 1211 (300dpi)

Mots clés

transport transportation technology railways British railway carriage carriages innovation railway line wheel wheels Victorian century railway tracks public transport Britain train track diagram newspapers railway track press wagon concept mechanism B&W piston road Transport 19th century black & white black and white B W nineteenth century wagons The Print Collector air pressure Illustrated London News waggon ILN newspaper engraving Unknown Samuel Samuel Clegg Clegg Joseph Samuda Samuda Jacob Joseph waggons Joseph d'Aguilar Samuda Joseph d'Aguilar Jacob Samuda
