Sujet
Inclined planes for use on canals, 1796. Artist: Unknown
Légende

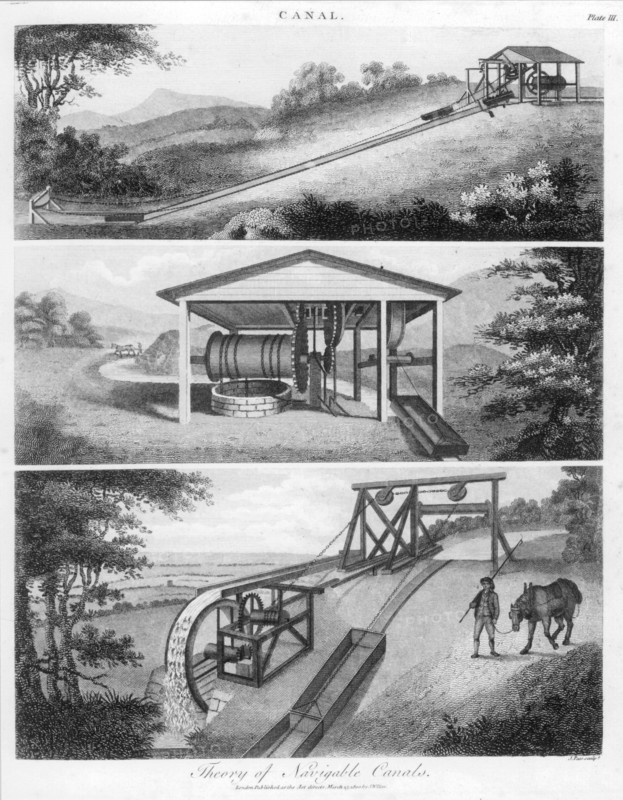

Inclined planes for use on canals, 1796. Top: double inclined plane. Middle: upper works of a single inclined plane. Bottom: upper works of a medium inclined plane powered by a water wheel. The inclined plane could be used to transfer vessels, in this case tub boats, often of iron, from one level of a canal to another without the expense of a flight of locks which could make the building of a canal uneconomic. Plate based on engravings in A Treatise on the Improvement of Canal Navigation by Robert Fulton. (London, 1796).
Oxford Science Archive
Date
1796
Crédit
Photo12/Heritage Images
Notre référence
HRM19B65_437
Model release
Non
Licence
Droits gérés
Format disponible
50,0Mo (2,9Mo) / 31,2cm x 40,1cm / 3690 x 4734 (300dpi)
