Caption

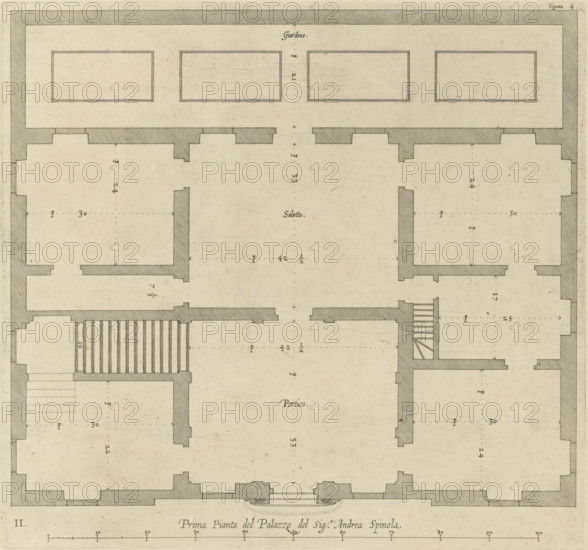

Floor plan of the ground floor of the Palazzo Gambaro in Genoa, Prima pianta del Palazzo del sigr. Andrea Spinola, print, album page, This print is part of an album., printmaker: Nicolaes Ryckmans, Antwerp, publisher: Peter Paul Rubens, grantor of privilege: Spanish crown, 1622, paper, engraving, height 248 mm x width 265 mm, height 583 mm x width 435 mm, plan, architecture, hotel, i.e. small palace in city, Genoa, Palazzo Gambaro, A monochrome architectural floor plan showing rectangular rooms and thick shaded walls with hatched fill, symmetrical layouts on either side of a central axis, staircases with parallel steps, a large central open space flanked by rooms with indented wall profiles, a border around the perimeter with diagonal hatching, multiple rectangular recessed panels at the top, dotted guide lines and small arrow markers throughout, and a horizontal scale bar along the bottom edge.

Credit line

Photo12/Liszt Collection

Reference

LZT26B27_352

License type

Rights managed

Available size

56.7Mb (6.6Mb) / 15.3in x 14.4in / 4603 x 4309 (300dpi)

Keywords

Floor plan ground floor Palazzo Gambaro Genoa Prima pianta del Palazzo del sigr Andrea Spinola print album page part album printmaker Nicolaes Ryckmans Antwerp publisher Peter Paul Rubens grantor privilege Spanish crown 1622 paper engraving height 248 mm x width 265 mm height 583 mm x 435 mm plan architecture hotel small palace city monochrome architectural floor plan showing rectangular rooms thick shaded walls hatched fill symmetrical layouts side central axis staircases parallel steps large central open space flanked rooms indented wall profiles border perimeter diagonal hatching multiple rectangular recessed panels top dotted guide lines small arrow markers horizontal scale bar bottom edge
