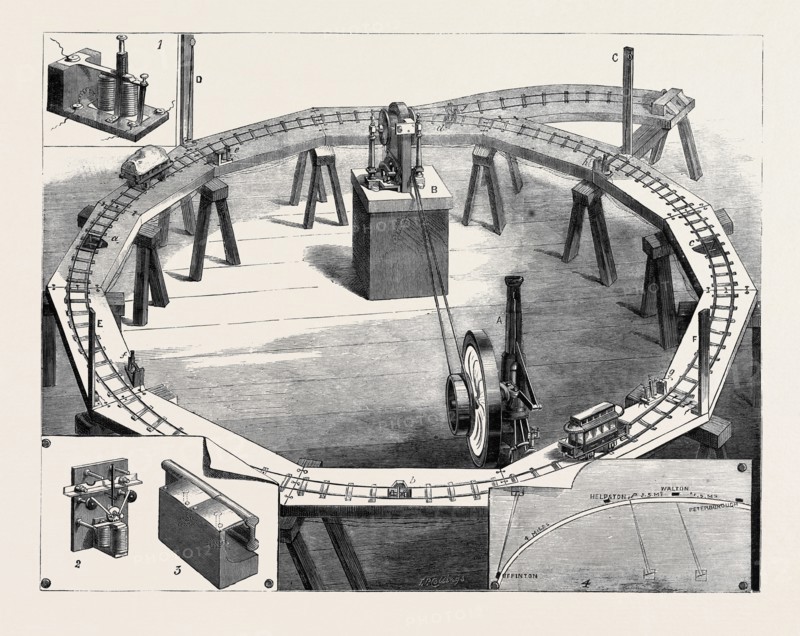

PROFESSORS AYRTON AND PERRY'S NEW ELECTRIC RAILWAY: A. Gas Engine Supplying Motive Power; B. Magneto Electric Machine; C, D, E, F, Electric Current Indicators; a, b, c, d, Contact Makers at the Ends of each Section; e, f, g, h, Blocking Electro Magnets attached to each Section; 1. Blocking Electro-Magnet (Enlarged); 2. Contact Maker, as in Model; 3. Contact Maker as Required for Actual Use; 4. Map Indicator, Automatically Showing the Position of Trains on the Line
