Photograph showing the antenna for the new Raytheon Radar, a weather-sealed 30-inch plastic dome shown here installed over pilot house of the Fury II of Newport Beach, California
Caption

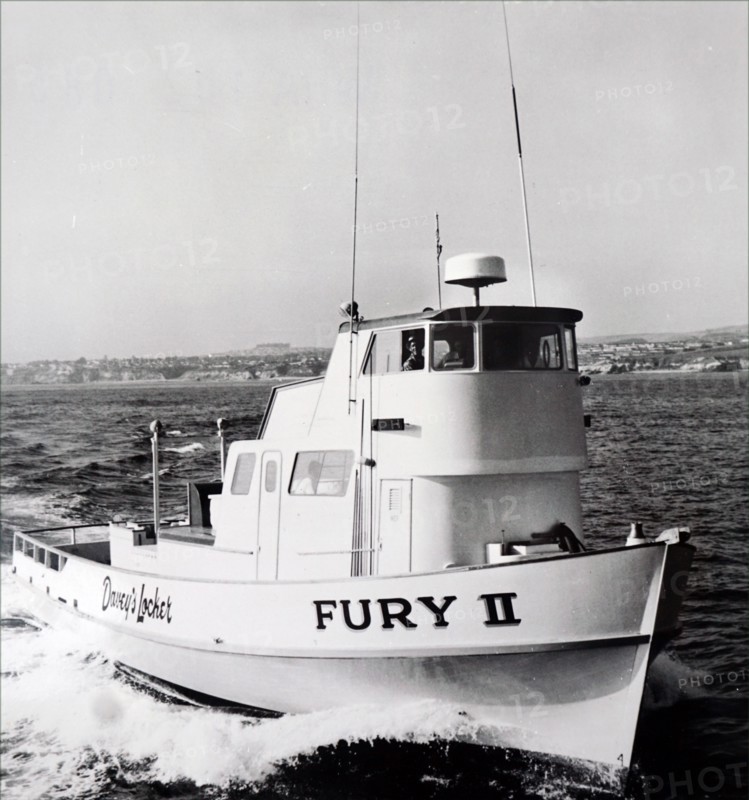

Photograph showing the antenna for the new Raytheon Radar, a weather-sealed 30-inch plastic dome shown here installed over pilot house of the Fury II of Newport Beach, California. Inside the dome is a lightweight aluminium antenna into which a 3,500-watt magnetron pumps its outgoing signal. The antenna weighs only 43 pounds and is linked to the indicator below decks by a single cable. Dated 20th century
Date
20th century
Credit line
Photo12/Ann Ronan Picture Library
Reference
ARP23A18_233
License type
Rights managed
Available size
60,0Mb (5,0Mb) / 14,8in x 15,8in / 4430 x 4734 (300dpi)
