Title

A sectional view of drains used in Carrick Bog, Co

Caption

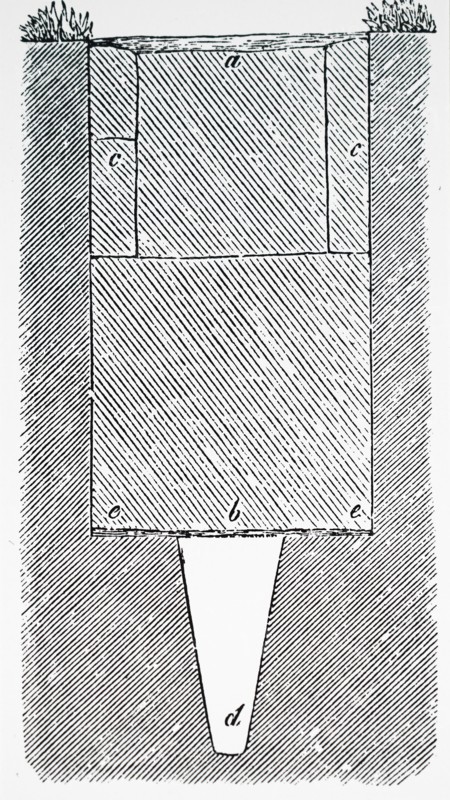

Engraving depicting a sectional view of drains used in Carrick Bog, Co. Trench is cut and left for about 4 months. V-shaped section at bottom is rammed and polished, and dry turfs are replaced as shown. Dated 19th Century

Date

19th century

Credit line

Photo12/Ann Ronan Picture Library

Reference

ARP23A16_436

License type

Rights managed

Available size

60.0Mb (5.4Mb) / 11.5in x 20.3in / 3436 x 6104 (300dpi)

Keywords

Engraving Engraved Illustration Illustrated Carrick Bog, Co. Carrick Bog Sectional View Sectional Section Polished Dry Drain Drainage Grass Turf Nature Natural Agriculture Agricultural Drainage System 19th Century Engraving
