Title

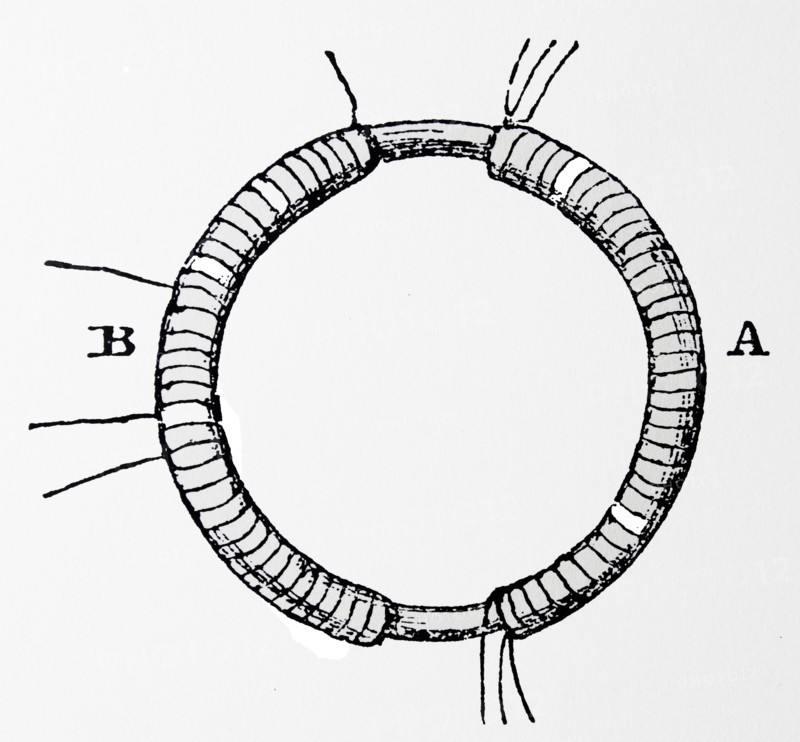

The first TRANSFORMER: The iron ring is wound with two separate coils of wire, A and B. Both coils are wired in sections. Current through A from a battery induces a current in B. Engraving after a sketch in Faraday's notebook
Caption
The first TRANSFORMER: The iron ring is wound with two separate coils of wire, A and B. Both coils are wired in sections. Current through A from a battery induces a current in B. Engraving after a sketch in Faraday's notebook
Date
1831
Credit line
Photo12/Ann Ronan Picture Library
Reference
ARP17A30_477
License type
Rights managed
Available size
60.0Mb (2.1Mb) / 15.8in x 14.7in / 4752 x 4413 (300dpi)
