Title
Men deepening a canal
Caption

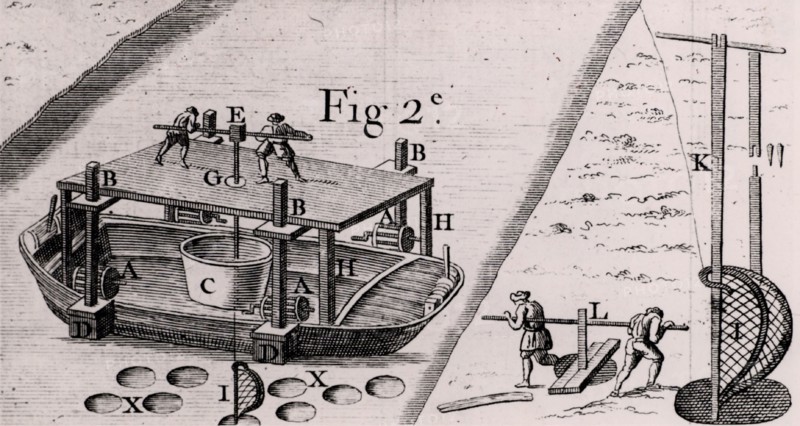

Method of deepening a canal. A number of holes are drilled close together on bed and the spoil is put on the barge accompanying the drilling rig. If current was not strong enough to level out the bed of the waterway, a scraper or drum was used to do the work. The process could also be carried out by two men (L) before canal was flooded.
From Bernard Forest de Belidor "Architecture Hydraulique" by Bernard Forest de Belidor (Paris, 1737).
Engraving.
Date
1737
Credit line
Photo12/Ann Ronan Picture Library
Reference
ARP07111_009626P
License type
Rights managed
Available size
19,1Mb (1,0Mb) / 11,8in x 6,3in / 3543 x 1889 (300dpi)
